Easy Slide Shows With reST & S5

Authors:David Goodger & Chris Liechti
Date:$Date: 2006-03-30 14:29:59 +0000 (Thu, 30 Mar 2006) $

How to create quick, good-looking presentation slide shows with Docutils/reStructuredText and S5.

This document serves both as a user manual and as a usage example of the s5_html.py writer and the rst2s5.py front end.

To view this document as a slide show see http://docutils.sf.net/docs/user/slide-shows.s5.html (or your local copy).

class tiny
  • S5 themes are designed for full-screen display areas with a 4:3 aspect ratio. If the slide text doesn't fit in your browser window, try decreasing the text size.
  • Use the space bar to advance, Page Up/Down & arrow keys to navigate.
  • Best viewed in Firefox, Safari, and Konqueror. Click the "Ø" button to switch between presentation & handout/outline modes. Hit the "C" key to display the navigation controls, or mouse over the lower right-hand corner.
  • Functionality is limited in Opera. Switch to full-screen mode (F11 key) to activate Opera Show.
  • S5 works in Internet Explorer, but it may look ugly.

The first slide of a presentation consists of all visible text up to the first section title. The document title is also added to the footer of all slides.

The "footer" directive is used to specify part of the slide footer text. It is currently limited to one short line (one paragraph).

There is no support for the "header" directive in the themes included with Docutils.

Introduction

class handout

rst2s5.py is a Docutils front end that outputs HTML for use with S5, a "Simple Standards-based Slide Show System" by Eric Meyer.

インストレーション

Prerequisites: Python and the Docutils package have to be installed. See the Docutils README file for installation instructions.

  • reStructuredText

    class handout

    Uses normal reStructuredText as input.

  • One section per slide

    class handout

    Each first-level section is converted into a single slide.

  • XHTML output

    Presentations can be viewed using most modern graphical web browsers. The browser must support CSS, JavaScript, and XHTML. S5 even works with IE!

    S5 was designed to add the functionality of the Opera Show standard (without Opera Show's limitations) to non-Opera browsers. Unfortunately, most of S5's CSS and JavaScript extensions don't function in the Opera browser.

  • Themes

    class handout

    A variety of themes are available. See Example Themes, below.

  • rst2s5.py

    class handout

    The front-end tool to generate S5 slide shows.

Keyboard Controls

The following apply in any supporting browser besides Opera, which uses the default Opera Show controls instead.

Action Key(s)
Go to the next slide
  • [Space bar]
  • [Return]
  • [Enter]
  • [Right arrow]
  • [Down arrow]
  • [Page down]
  • Click the left mouse button outside of the control area, Flash object, or movie
Go to the previous slide
  • [Left arrow]
  • [Up arrow]
  • [Page up]
Go to the title (first) slide [Home]
Go to the last slide [End]
Jump directly to a slide Type the slide number, then hit [Return] or [Enter]
Skip forward n slides Type the number of slides to skip, then hit any "go to next" key (except [Return] or [Enter])
Skip backward n slides Type the number of slides to skip, then hit any "go to previous" key
Switch between slideshow and outline view
  • [T]
  • Click the Ø button
Show/hide slide controls
  • [C]
  • Move the mouse pointer over the control area

Further details of the S5 user interface can be found at Eric Meyer's S5 page.

Features (1)

The S5/HTML Writer supports all the standard Docutils HTML features. S5 has been released to the Public Domain.

S5-specific features:

class incremental
  • The document title is duplicated on each slide in the S5 footer.

  • The footer directive may be used to define additional text in the S5 footer.

    But it is limited to one line of text.

    This is useful for information such as the date of the presentation and/or the location. The field in the footer is left blank if no footer directive is used.

    例:

    .. footer:: Location - Date


    There is also a progress indicator (slide counter) in the footer that can be enabled. It's disabled by default.

  • Incremental display.

    class handout

    An "incremental" class can be assigned to lists and other elements to get one-item-at-a-time behavior (like this list). Incremental display does not work in the Opera browser.

  • Text auto-scaling.

    class handout

    The text size adjusts relative to the size of your browser window automatically. You may need to reload the document after resizing the window. The browser and platform affect the font used; be sure to test the slide show on the presentation system.

Features (2): Handouts

The contents of any element with a "class" attribute value of "handout" are hidden in the slide presentation, and are only visible when the presentation is printed, or viewed in outline mode. "Handout"-class elements can appear anywhere in the text, as often as needed.

This means that the slides and extra handout material can be combined in one document. The handout can be printed directly from the browser, and it will contain more than just silly framed slides. This can be used to provide more detailed information, or for speaker's notes.

class incremental
  • Use the "class" directive:

    .. class:: handout


    The .. class:: handout directive can be used to tag individual paragraphs and other elements. The "class" directive applies to the first element immediately following:

    .. class:: handout

    This paragraph will get a
    ``class="handout"`` attribute.

    This paragraph will not be affected.


    It also applies to multiple elements in the directive content:

    .. class:: handout

       These paragraphs are the content
       of the "class" directive.  And as such...

       Both paragraphs will *individually* receive
       ``class="handout"`` attributes.

  • Use the "container" directive:

    .. container:: handout


    Arbitrary handout blocks can be created using the container directive. The content is treated as one.

  • Use the "class" option of directives that support it:

    .. topic:: Extra Material For Handouts
       :class: handout


The following directives support "class" options:

  • all admonition directives ("admonition", "note", "hint", etc.)
  • "image" & "figure"
  • "topic"
  • "sidebar"
  • "line-block"
  • "parsed-literal"
  • "rubric"
  • "compound"
  • "table", "csv-table", & "list-table"
  • "target-notes" (more about that below)
  • "role" (pre-defined; more below)

Handout contents are also visible on the screen if the S5 view mode is toggled from "slide show" to "outline" mode.

Caveats

class incremental
  1. Some Docutils features are not supported by some themes.

    For example, header rendering is not supported by the themes supplied with Docutils.

    The "header" directive is used to set header text. S5 automatically inserts section/slide titles into the "header" area of a slide. If both Docutils headers and S5 headers (slide titles) exist simultaneously, they interfere with each other.

  2. Care must be taken with the "contents" directive.

    The --no-toc-backlinks option is the default for the S5/HTML writer (toc_backlinks=0 setting). Other values for this setting will change the CSS class of headings such that they won't show up correctly in the slide show.

    Use the :class: handout option on the "contents" directive to limit the table of contents to the handout/outline mode only:

    .. contents::
       :class: handout

class incremental

3. Subsections ...

... may be used, sparingly.

Only first-level sections become slides. Not many levels of subsections can fit on a slide.

Subsections (of any level) work normally in handouts though. Add ".. class:: handout" before a subsection (or sub-subsection, or ...), and the entire subsection will only appear in the handout.

Generating a Slide Show (1)

class incremental
  1. Open a console (terminal, command shell) and go to the folder containing your file, slides.txt.

  2. Run the command:

    rst2s5.py slides.txt slides.html

  3. Specify an S5 theme with the --theme option.

    class handout

    Docutils will copy the S5 theme files into a ui/<theme> folder beside the output HTML file. A slide show can also link to an existing theme using the --theme-url option.

Generating a Slide Show (2)

class incremental
  1. Include a copy of any linked stylesheet.

    class handout

    The default Docutils stylesheet, html4css1.css, will normally be embedded in the output HTML. If you choose to link to a stylesheet instead of embedding, you must include a copy (suggested location: in the ui/ directory).

  2. Open slides.html in a web browser.

  3. Expand the browser window to full-screen mode, and speak.

    class handout

    The Web Developer extension for Firefox is very useful. With it, you can resize your browser window to the exact dimensions of the projector you'll be using, so you can test beforehand. There are many other useful features as well.

  4. Profit!

Examples (1)

A B A or B
False False False
True False True
False True True
True True True

Examples (2): Incremental Text

class incremental

Paragraphs can be displayed one at a time...

... or a bunch at a time.

This second paragraph is displayed together with the previous one by grouping them with the "container" directive.

We can also display one word at a time, or a phrase at a time, or even one letter at a time!

(But the markup ain't pretty.)

Examples (3): Incr. Graphics

Let's play... Rock, Scissors, Paper

incremental hidden slide-display
../../../_images/rsp-objects.png ../../../_images/rsp-cuts.png ../../../_images/rsp-covers.png ../../../_images/rsp-breaks.png
../../../_images/rsp-all.png

Themes

class incremental
  • Several themes are available, and they're easy to adapt.

    Themes from the S5 tutorial can be used. These themes are in the public domain and may be redistributed freely.

    Sites with other S5 themes:

    S5 is becoming more popular every day. Do a web search for "S5 theme" and you're bound to find plenty of choices.

  • "--theme" option.

    The theme can be specified with the "--theme" command-line option.

    例:

    rst2s5 --theme big-black slides.txt slides.html


    The default theme is "default".

  • "theme" setting.

    class handout

    You can set the theme with the "theme" configuration file setting.

  • Copied to ./ui/<theme>/.

    class handout

    Themes are copied into a ui/<theme> folder inside the folder containing the presentation.

  • Link with "--theme-url" option.

    class handout

    Link to a theme on the same or another web site, using the "--theme-url" option or "theme_url" configuration file setting.

Example Themes

class handout

The default theme, "default", is a simplified version of S5's default theme. It accommodates up to 13 lines of text.

class center

"default"

../../../_images/default.png

Example Themes: Small Text

class handout

The "small-white" and "small-black" themes are simplifications of the default theme (small black text on a white background, and small black text on a white background, respectively). They each accommodate up to 15 lines of text.

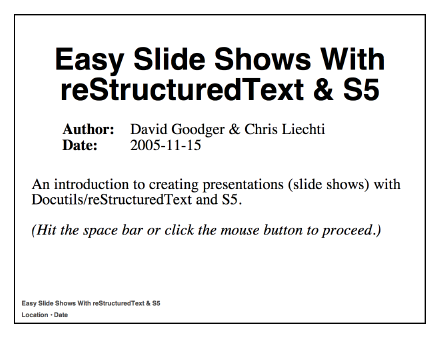

"small-white"

../../../_images/small-white.png

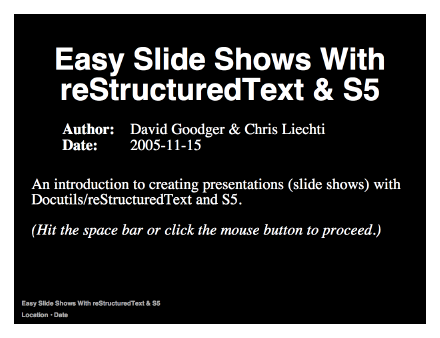

"small-black"

../../../_images/small-black.png

Example Themes: Large Text

class handout

The "big-white" and "big-black" themes feature very large, bold text, with no footers. Only five short lines fit in a slide.

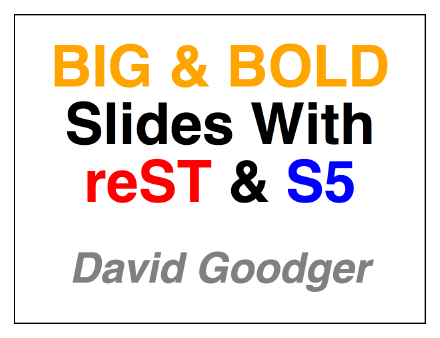

"big-white"

../../../_images/big-white.png

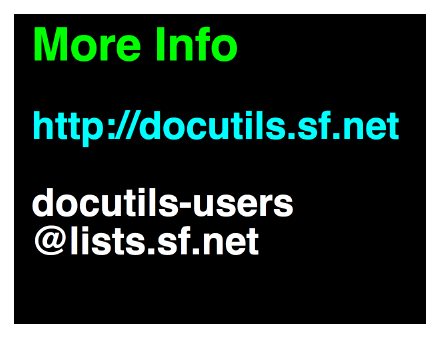

"big-black"

../../../_images/big-black.png

Example Themes: Medium Text

class handout

The "medium-white" and "medium-black" themes feature medium-sized text. Up to 8 lines of text are accommodated.

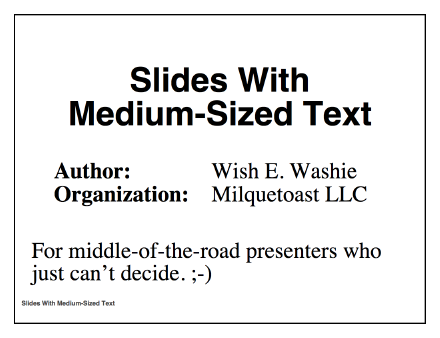

"medium-white"

../../../_images/medium-white.png

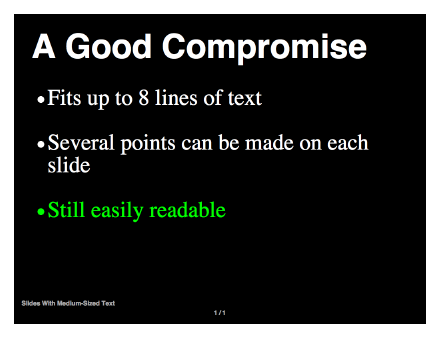

"medium-black"

../../../_images/medium-black.png

S5 Theme Files

An S5 theme consists of a directory containing several files -- stylesheets, JavaScript, and graphics:

../../../_images/s5-files.png

The generated HTML contains the entire slide show text. It also contains links to the following files:

  • slides.css simply contains import links to:

    • s5-core.css: Default styles critical to the proper functioning of the slide show; don't touch this!
    • framing.css: Sets the basic layout of slide components (header, footer, controls, etc. This file is the often edited.
    • pretty.css: Presentation styles that give the slide show a unique look and feel. This is the file that you're most likely to edit for a custom theme. You can make a whole new theme just by editing this file, and not touching the others.
  • outline.css: Styles for outline mode.

  • print.css: Styles for printing; hides most layout elements, and may display others.

  • opera.css: Styles necessary for the proper functioning of S5 in Opera Show.

  • slides.js: the JavaScript that drives the dynamic side of the slide show (actions and navigation controls). It automatically IDs the slides when the document loads, builds the navigation menu, handles the hiding and showing of slides, and so on. The code also manages the fallback to Opera Show if you're using the Opera web browser.

    Two files are included to support PNG transparency (alpha channels) in Internet Explorer:

    • iepngfix.htc
    • blank.gif

Making a Custom Theme

class incremental
  1. Run "rst2s5.py --theme <base-theme> <doc>.txt <doc>.html".

    class handout

    This initializes the ui directory with the base theme files.

  2. Copy ui/<base-theme> to ui/<new-theme>.

  3. Edit the styles.

    class handout

    Start with pretty.css; edit framing.css if you need to make layout changes.

  4. Run "rst2s5.py --theme-url ui/<new-theme> <doc>.txt <doc>.html".

    class handout

    We use the --theme-url option to refer to the new theme. Open your <doc>.html in a browser to test the new theme.

  5. Rinse & repeat.

    class handout

    Repeat from step 3 until you're satisfied.

Resources:

Classes: Incremental (1)

class handout

Several "class" attribute values have built-in support in the themes supplied with Docutils.

class incremental

As described earlier,

  • .. class:: incremental

  • .. container:: incremental

  • .. sidebar:: title
       :class: incremental


Classes: Incremental (2)

The "incremental" interpreted text role is also supported:

class incremental
:incremental:`This will appear first,` `and
this will appear second.`:incremental:

Requires ".. include:: <s5defs.txt>".

As you can see, this markup is not very convenient.
class incremental
But s5defs.txt includes this useful definition:
".. default-role:: incremental". So:
`This` `is` `all` `we` `need`

This is all we need to mark up incremental text.

Classes: Incremental (3)

class small
.. container:: animation

   .. image:: images/empty.png
      :class: hidden slide-display

   .. class:: incremental hidden slide-display

      .. image:: images/1.png
      .. image:: images/2.png

   .. image:: images/3.png
      :class: incremental

This is how the example works.

The animation effects are caused by placing successive images at the same location, laying each image over the last. For best results, all images should be the same size, and the positions of image elements should be consistent. Use image transparency (alpha channels) to get overlay effects.

Absolute positioning is used, which means that the images take up no space in the flow. If you want text to follow the images, you have to specify the total size of the container via a style. Otherwise, the images and any following text will overlap.

These class values do the work:

animation
This wraps the container with styles that position the images absolutely, overlaying them over each other. Only useful on a container.
hidden
Unless overridden (by "slide-display", for example), these elements will not be displayed. Only the last image will be displayed in handout mode, when print, or when processed to ordinary HTML, because it does not carry a "hidden" class.
slide-display
In conjunction with "hidden", these elements will only appear on the slide, preventing clutter in the handout.
incremental
The second and subsequent images will appear one at a time. The first image will already be present when the slide is displayed, because it does not carry an "incremental" class.

Classes: Text Size

class incremental
  • tiny (class & role name: "tiny", e.g. ":tiny:`text`")
  • small ("small")
  • normal (unstyled)
  • big ("big")
  • huge ("huge")

Requires ".. include:: <s5defs.txt>".

Classes: Alignment

class incremental
class left

Left (class name: "left")

class center

Center ("center" & "centre")

Right ("right")

class handout

These classes apply to block-level elements only. They cannot be used for inline text (i.e., they're not interpreted text roles).

class incremental

例:

.. class:: center

Text to be centered.

Classes: Text Colours

black [black], gray, silver, white [white], maroon, red, magenta, fuchsia, pink, orange, yellow, lime, green, olive, teal, cyan, aqua, blue, navy, purple

The class names and role names are the same as the colour names. For example, ":orange:`text`" produces "text".

class incremental

Requires ".. include:: <s5defs.txt>".

Classes: Borderless Tables

class handout

Here's an ordinary, unstyled table:

class incremental
Sometimes borders
are useful.

And after applying ".. class:: borderless":

class borderless
But sometimes, borders
are not wanted.

Classes: Print-Only

class handout

Elements with class="print" attributes display their contents when printed, overriding class="hidden".

class incremental

Example: the "target-notes" directive:

.. topic:: Links
   :class: hidden print

   .. target-notes::
      :class: hidden print

One good example, used in this document, is the "target-notes" directive. For each external target (hyperlink) in the text, this directive generates a footnote containing the visible URL as content. Footnote references are placed after each hyperlink reference.

The "topic" directive is given a "class" attribute with values "hidden" and "print", so the entire topic will only be displayed when printed. The "target-notes" directive also assigns a "class" attributes with values "hidden" and "print" to each of the footnote references it inserts throughout the text; they will only show up when printed.

class incremental

Other uses may require ".. include:: <s5defs.txt>".

Useful Extensions For Firefox

  • Autohide

    class handout

    Automatically hides toolbars in full-screen mode.

  • Web Developer

    class handout

    Adds a context submenu and a toolbar with a lot of useful functionality, including the viewing and live editing of stylesheets, and sizing the browser window.

To Do

class incremental
  • Multi-display support:

    • speaker's notes on the laptop screen
    • slides on the projector
    • two views stay in sync
    • presentation controlled from either display
  • Add timeout to incremental style.

    class handout

    I.e., incremental-specific style should go away (revert to normal) after a certain interval.

These will require some serious JavaScript-fu!
